Beschreibung

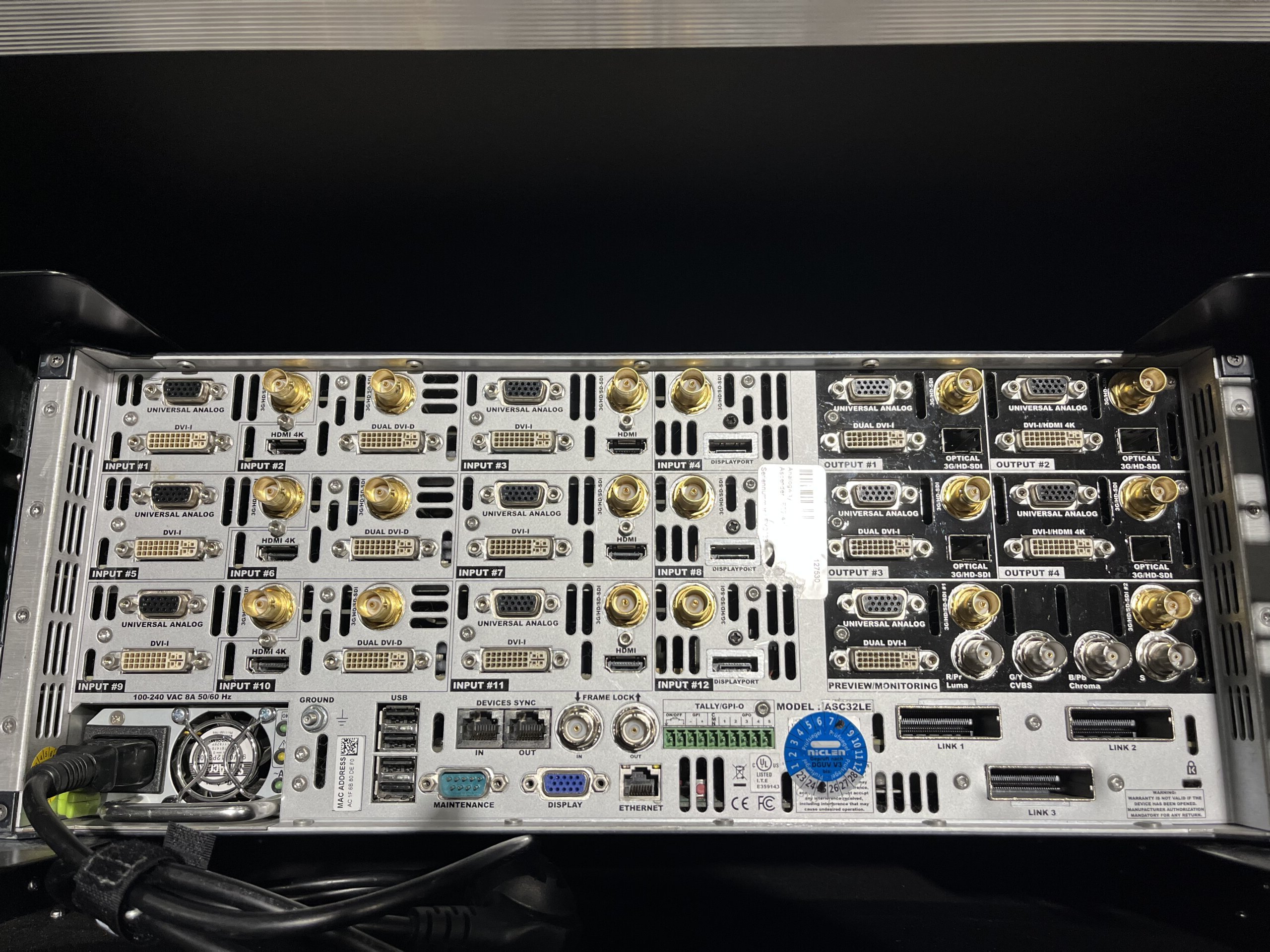

Leistungsstarker Multi-Screen-Seamless-Switcher auf Basis der LiveCore™-Plattform von AnalogWay, der modernste Verarbeitung, Soft Edge und 4K-Fähigkeiten für erstklassige Präsentationen bietet.

• KEY FEATURES
  Based on LiveCoreTM platform
  Ruggedized and heavy-duty design
  Versatile connectivity (12 active inputs, 42 total input plugs)
  Input formats up to Dual Link 60hz 4:4:4 or 4k30hz 4:4:4 – supports Quad HD sources
  Output formats up to 4K30Hz 4:4:4, 4K60Hz 4:2:0 and Quad HD 60Hz 4:4:4
  Seamless crossfade on all layers, on all 12 sources
  Rotation capability on all outputs
  Independent output rate
  Flying layer movement with programmable paths
  Multiple layer transition options
  Independent preview/mosaic/monitoring output
  Customization of monitoring layouts (8 presets)
  Intuitive drag and drop Web based GUI, cross platform compatible
  Live video thumbnails shown on GUI
  Collaborative architecture (up to 5 simultaneous operators)
  Single screen memories and master memories to easily recall looks on all your screens
  Creative display configurations (mixer, hard-edge, soft-edge)
  Custom output formats for non-standard display applications (10 memories)
  Custom Canvas mode allows you to place outputs anyway on your “video canvas” for
  special LED wall applications
  Area of Interest option to customize active areas of outputs
  Confidence monitor available for unused outputs
  Native background using still images or live sources
  Still images support alpha-channels for transparent background
  Cut and Fill (using two sources or a source and a still image)
  Quiet: 49dB average noise at 1 meter when ambient temp is less than 32°C/90°F
  Additive modularity (Increase the outputs and/or inputs by adding an additional
  Ascender or LOE)
  Associative modularity (create a large system of LiveCore™ units all controlled from a
  Vertige™ or from RCU)
  Sequencer for creating programmable timelines
  Remote services and maintenance
  HDCP compliant
